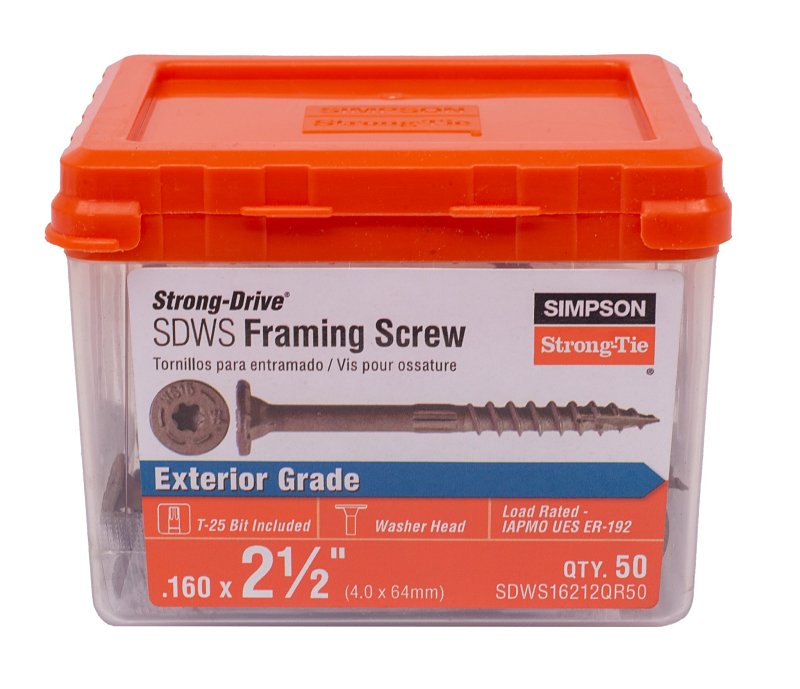

Simpson Strong-Tie Strong-Drive SDWS SDWS16212Q-R50 SDWS Framing Screw, 2-1/2 in L, Serrated Thread, Low-Profile Head

Simpson Strong-Tie

$14.00~~$14.00~~

Applicable Materials: Wood
Drive Size: T25
Drive Type: 6-Lobe
Head Type: Low-Profile
Length: 2-1/2
Model #: SDWS16212QR50
UPC #: 707392010357
SKU: 7501430

Your shopping list will be used for pickup in-store

Product Details

The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS framing screw is excellent to nails in holding power and pull-out resistance. It is code listed in IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for most common wood framing applications. The screw has a SawTooth® point that makes for fast installations with reduced torque without pre-drilling and its specially designed head countersinks easily to provide a clean, flush finish. The T25 bit holds the six-lobe recess tightly for more secure drive control.

Key Features

Washer head with under-head box nibs provides increased bearing in structural applications and provides clean and easy countersinking
SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for pre-drilling in most applications
The six-lobe drive provides positive bit engagement resulting in easier installations and longer bit life
Quik Guard® coating provides protection in indoor and outdoor applications

Item Specifications

Applicable Materials	Wood
Drive Size	T25
Drive Type	6-Lobe
Head Type	Low-Profile
Length	2-1/2

Package Quantity	50 PK
Point Type	Type-17 SawTooth
Thread Length	1-1/8 in
Thread Type	Serrated

MORE DETAILS:

Simpson%20Strong-Tie%202024%20Catalog.pdf
Application: For multi-purpose wood-to-wood and engineered-wood applications, including framing and indoor/outdoor projects
