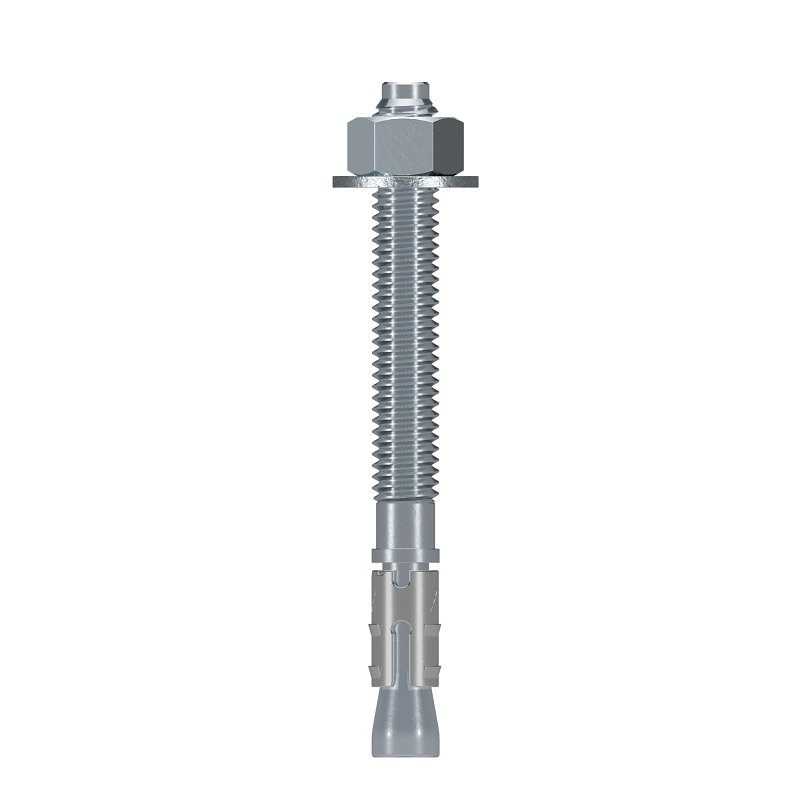

Simpson Strong-Tie Strong-Bolt 2 STB2-37334P1 Wedge Anchor, 3/8 in Dia, 3-3/4 in OAL, Carbon Steel, Zinc

Simpson Strong-Tie

$1.98~~$1.98~~

Color: Gray
Diameter: 3/8 in
Drill Size: 3/8 in
Finish: Zinc
Material: Carbon Steel
Model #: STB2-37334P1
UPC #: 707392566724
SKU: 8229551

Your shopping list will be used for pickup in-store

Product Details

Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.

Key Features

Chamfered top designed to prevent mushrooming during installation
Suitable for horizontal, vertical and overhead applications
Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete-over-steel deck thickness of 2-1/2 and 3-1/4 in
Standard (ANSI) fractional sizes, fits standard fixtures and installs with common drill bit and tool sizes

Item Specifications

Color	Gray
Diameter	3/8 in
Drill Size	3/8 in
Finish	Zinc
Material	Carbon Steel
Maximum Work Thickness	3-1/4 in

Minimum Embedment Depth	1-7/8 in
Overall Length	3-3/4 in
Shear Strength	1800 lb
Tensile Strength	115000 psi
Thread Length	2-5/16 in
