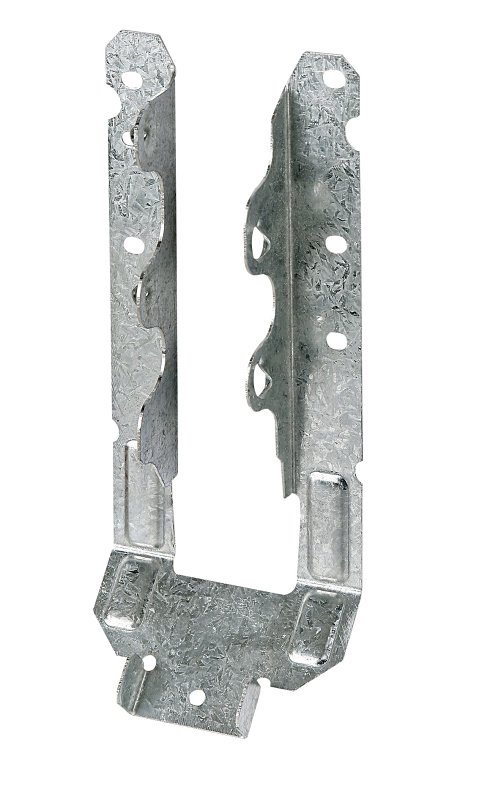

Simpson Strong-Tie LRUZ LRU28Z Rafter Hanger, 6-15/16 in H, 1-15/16 in D, 1-9/16 in W, Steel, ZMAX, Face Mounting

Simpson Strong-Tie

$9.00~~$9.00~~

Depth: 1-15/16 in
Fastener Type: Screw
Finish: ZMAX
Material: Steel
Mounting Type: Face
Model #: LRU28Z
UPC #: 707392168331
SKU: 7495781

Your shopping list will be used for pickup in-store

Product Details

The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to ridge connections. Used with solid sawn rafters, the LRUZ's unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.

Key Features

The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications
Slopes up or down to 45 deg
For added versatility, the fasteners on the face of the hanger are placed high, enabling the bottom of the rafter-to hang below the ridge beam
Made from 18 ga steel
ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications

Item Specifications

Depth	1-15/16 in
Fastener Type	Screw
Finish	ZMAX

Material	Steel
Mounting Type	Face
Width	1-9/16

MORE DETAILS:

Simpson%20Strong-Tie%202024%20Catalog.pdf
