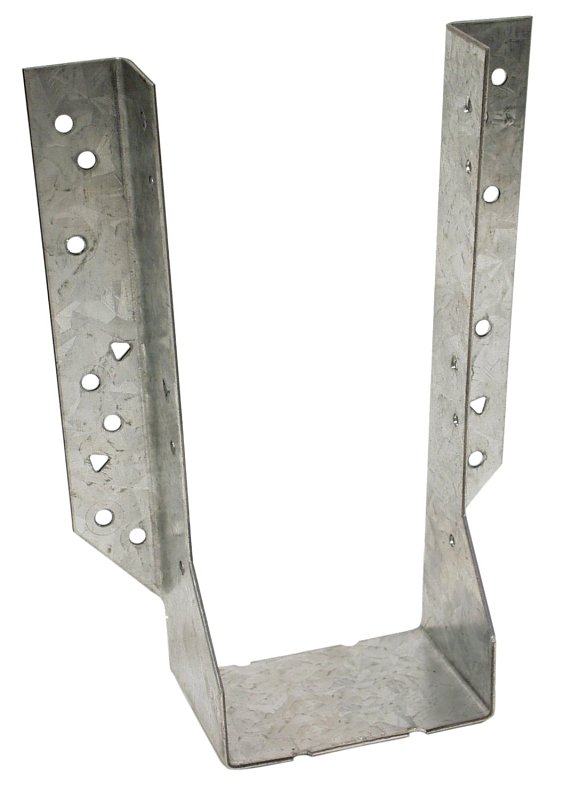

Simpson Strong-Tie HU HU410 Heavy-Duty Joist Hanger, 8-3/8 in H, 2-1/2 in D, 6.063 in W, 4 x 10 in, Steel

Simpson Strong-Tie

Simpson Strong-Tie HU HU410 Heavy-Duty Joist Hanger, 8-3/8 in H, 2-1/2 in D, 6.063 in W, 4 x 10 in, Steel

$17.00$17.00
Simpson Strong-Tie HU HU410 Heavy-Duty Joist Hanger, 8-3/8 in H, 2-1/2 in D, 6.063 in W, 4 x 10 in, Steel
  • Depth: 2-1/2 in
  • Fastener Size: 0.148 in Dia x 3 in L Joist 0.162 in Dia x 3.5 in L Header
  • Fastener Type: Nail Screw
  • Finish: Galvanized
  • Material: Steel
  • Model #: HU410
  • UPC #: 044315405006
  • SKU: 7494792

Your shopping list will be used for pickup in-store

Product Details

The HU is designed for structures requiring additional strength and safety factors. Some models of this heavy-duty, face-mount hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45 deg.

Key Features

  • Extra optional triangle holes for additional load
  • HU series hangers are tested, load-rated and code compliant
  • Made from 14 ga steel
  • Galvanized (G90) for extra corrosion resistance

Item Specifications

Depth2-1/2 in
Fastener Size0.148 in Dia x 3 in L Joist 0.162 in Dia x 3.5 in L Header
Fastener TypeNail Screw
FinishGalvanized
MaterialSteel
Mounting TypeFace
Size4 x 10 in
Skew Angle45 deg
Width6.063
